High Availability & Scalability

Scalability & Hight Availability

• Scalability (확장성) : an application / system can handle greter loads by adapting
  • 시스템의 규모를 얼마나 유연하게 조절할 수 있는가
  • Vertical Scalability
  • Horizontal Scalability ( = elasticity)
  • is linked but different to High Availability (고가용성)
• Vertical Scalability
  • increasing the size of the instance
  • t2.micro -> t2.large
  • very common for non distributed systems, such as database
  • RDS, ElastiCache can be scaled vertically
  • 보통 수직 확장에 한계가 존재함 (하드웨어 한계)
• Horizontal Scalability
  • increase the number of instances / systems
  • implies distributed systems
  • very common for web applications/modern applications
  • easy to horizontally scale thanks to cloud offerings
• High Availability
  • 수평 확장과 함께 사용되는 개념
  • running your application/system in at least 2 data centers(or az)
  • the goal is to survive a data center loss (데이터 손실에서 살아남기)
  • 수동적 ( RDS Multi AZ )
  • 능동적 ( horizontal scailing )
• High Availability & Scalability For EC2
  • Vertical Scaling = Increase instance size
  • Horizontal Scaling = Increase number of instances
  • High Availability = Run instances for the same application across multi AZ

Load Balancing

• server that fowrads traffic to multiple servers downstream
• 트래픽을 잘 분산하여 서버를 안정적으로 운영할 수 있음
• Why Use?
  • 부하를 다수의 다운스트림 인스턴스로 분산시키기 위함
  • 애플리케이션에 단일 엑세스 지점을 노출
  • 다운스트림 인스턴스의 장애를 원할하게 처리
  • 인스턴스 상태 체크를 주기적으로 함
  • 웹사이트에 대한 SSL 종료 제공
  • 영역 간의 고가용성
  • 공용 트래픽과 사적 트래픽을 분리
  • Enforce stickiness with cookies
• Why Elastic Load Balancer?
  • Elastic Load Balancer = 관리형 load balancer
    • AWS가 작동할 것임을 보장
    • AWS가 업그레이드, 유지보수, 고가용성을 책임
    • AWS는 몇 가지 configuration knobs도 제공
  • 자체 로드 밸런서를 사용하는 것 = 비용은 적게 들지만, 노력은 많이 필요함
  • 다수의 AWS 서비스와 통합되어 있음
    • EC2, EC2 Auto Scaling Groups, Amazon ECS
    • AWS Certificate Manger, CloudWatch
    • Route 53, AWS WAF, AWS Global Accelerator
• Health Checks
  • crucial for Load Balancers
  • enable the load balancer to know if instances it forwards traffic to are available to reply to requests
  • health check is done on a port and a route
  • response!=200 -> unhealthy
• Types of load balancer on AWS
  • Classic Load Balancer
    • Supports TCP, HTTP&HTTPs
    • Health checks are TCP or HTTP based
    • Fixed hostname : XXX.region.elb.amazonaws.com
    • 지원하는 프로토콜이 많다는 것이 장점, 그러나 앞으로 구축할 시스템에는 사용하지 않는 것을 권장
  • Application Load Balancer
    • Layer7, HTTP 전용
      • HTTP/HTTPS에 가장 적합한 로드 밸런서
    • load balancing to multiple HTTP applications across machines
    • load balancing to multiple applications on the same machine
    • support for http/2 and websocket
    • support redirects
    • routing tables to different target groups:
      • based on path in URL
      • based on hostname in URL
      • based on Query String, Headers
      • 요청되는 명령어의 내용을 보고 판단하기 때문
    • great fit for micro services & container-based application
    • has a port mapping feature to redirect to a dynamic port in ECS
    • Target Groups
      • EC2 instances - HTTP
      • ECS tasks - HTTP
      • Lambda functions - HTTP request is translated into a JSON event
      • IP Addresses - must be private IPs
    • can route to multiple target groups
    • health checks are at the target group level
    • fixed hostname (xxx.region.elb.amazonaws.com)
    • 인스턴스와 로드 밸런서 사이의 통신은 암호화가 가능
    • the application servers don't see the IP of the client directly
      • the true ip of the client is inserted in the header X-Forwarded-For
      • get Port and Proto
  • Network Load Balancer
    • Layer 4
      • Forward TCP&UDP traffic to your instances
      • Handle millions of request per seconds
      • Less latency ~ 100ms
    • 패킷이라고 불리는 단편 데이터밖에 볼 수 없기 때문에 ALB만큼 상세하게 분배할 수 없음
      • 그러나 분배 대상의 정적 IP 주소를 설정 가능
      • 서버에 접속한 클라이언트의 IP 주소를 그대로 서버에 전송할 수 있도록 설정 가능
    • one static IP per AZ, supports assiging Elastic IP
    • used for extreme performance, TCP or UDP traffic
    • Not included in the AWS free tier
    • Target Groups
      • EC2 instances
      • IP Addresses
      • Application Load Balancer
      • Health Checks support the TCP, HTTP and HTTPS Protocol
  • Gateway Load Balancer
    • Deploy,scale, and manage a fleet of 3rd party network virtual appliances in AWS
      • 방화벽, 침입 탐지 방어, 딥 패킷 검사 시스템 등
    • layer 3 - IP packets
    • Transparent Network Gateway - single/entry/exit for all traffic
    • Load Balancer - distributes traffic to your virtual appliances
    • GENEVE protocol on port 6081
    • Target Groups
      • EC2 instances
      • IP Addresses - must be private IPs
  • 새로운 세대의 로드 밸런서를 사용하는 것이 좋음
  • 일부 로드 밸런서는 internal/external ELB로 설정할 수 있다.

Sticky Sessions - 고정 세션

• possible to implement stickiness so that the same client can always be directed to the same instance behind a load balancer
• works for classic load balancer, application load balancer, network load balancer
• clb,alb -> cookie used for stickiness has an expiration data you control
• this may bring imbalance to the load over the backend EC2 instances

Sticky Sessions - Cookie Names

• Application-based Cookies
  • Custom Cookie
    • generated by target
    • can include any custom attributes required by the application
    • name must be specified individually for each target group
    • don't use AWSALB, AWSALBAPP or AWSALBTG
  • Application Cookie
    • generated by the load balancer
    • name is AWSALBAPP
• Duration-based Cookies
  • generated by the load balancer
  • name is AWSALB for ALB, AWSELB for CLB

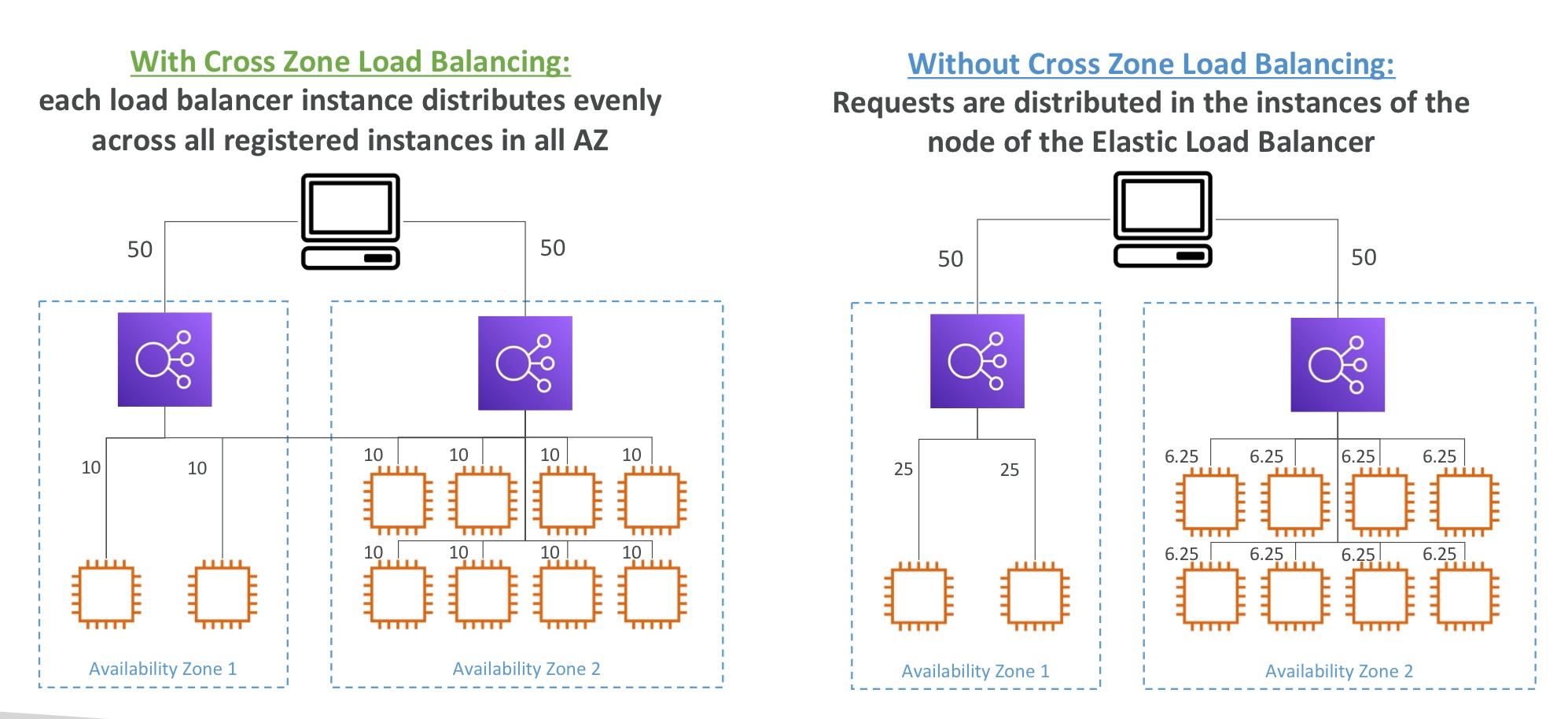

Cross-Zone Load Balancing

• Application Load Balancer
  • Enabled by default
  • No charges for inter AZ data
• Network Load Balancer & Gateway Load Balancer
  • Disabled by default
  • pay charges for inter AZ data if enabled
• Classic Load Balancer
  • diabled by default
  • no charges for inter AZ data if enabled

SSL/TLS - Basics

• An SSL Certificate allows traffic between clients and load balancer to be encrypted in transit
• SSL - Secure Sockets Layer
  • for encrypt connection
  • public ssl -> issued by Certificate Authorities
  • have an expiration date, must be renewed
  • load balancer uses an X.509 certificate
  • mange certificates using ACM (AWS Certificate Manger)
    • ACM에 사용자 지정 인증서 업로드 가능
  • HTTPS listener:
    • must specify a default certificate
    • can add an optional list of certs to support multiple domains
    • clients can use SNI(Server Name Indication) to specify the hostname they reach
    • ability to specify a security policy to support older versions of SSL/TLS
• TLS - Transport Layer Security
  • newer version
• TLS certificates are mainly used, but people still refer as SSL

SSL - Server Name Indication

• solves the problem of loading multiple SSL certificates onto one web server
• newer protocol, and requires the client to indicate the hostname of the target server in the initial SSL handshake
• server will then find the correct certificate, or return the default one

Elastic Load Balancers - SSL Certificates

• Classic Load Balancer
  • support only one SSL certificate
  • must use multiple CLB for multiple hostname with multiple SSL certificates
• Application Load Balancer
  • supports multiple listeners with multiple SSL certificates
  • uses SNI to make it work
• Network Load Balancer
  • supports multiple listeners with multiple SSL certificates
  • uses SNI to make it work

Connection Draining

• Feature naming
  • CLB : connection draining
  • ALB & NLB : deregistration delay
• 인스턴스가 de-registering or unhealthy 상태에 있을 때 in-flight 요청
• EC2 인스턴스가 de-registering 상태 일 때 새로운 요청을 보내지 않도록 함
• 1 to 3600초
• can be disabled
• set to a low value if requests are short

Auto Scaling

• aws의 장점 중 하나 : 유연성이 높음
• 인스턴스의 증감을 자동으로 실행
  • 서버의 액세스 상태에 따라 서버 대수를 늘리거나 줄이는 기능
• AWS는 auto scaling을 단독으로 사용할 뿐만 아니라 cloudwatch에서 서버의 부하 정보 (cpu 부하, 네트워크 통신량 등) 데이터를 참조하여 스케일링에 참고할 수 있음
• Auto Scaling을 시작하려면 그룹이 필요함 (인스턴스의 집합)
  • 그 그룹에 인스턴스(서버)의 최소 대수와 최대 대수를 설정해야 함
  • 범위 안에서 인스턴스의 수가 증감
    • (1) EC2 인스턴스가 정지한 경우 분리하고 새로운 EC2 인스턴스 생성
    • (2) 일정에 맞춰 스케일링하기
    • (3) CPU와 네트워크의 부하를 참고, 특정 임계 값을 넘을 때 인스턴스 수를 자동적으로 증감
  • 서버 시작에 필요한 AMI와 키 페어, 보안 그룹등을 설정해야 함

Auto Scaling - Cloudwatch Alarms & Scaling

• possible to scale an ASG based on CloudWatch alarms
• an alarm monitors a metric
  • average cpu
  • custom metrics
• based on the alarm
  • create scale-out polices (increase the number of instances)
  • create scale-in polices(decrease the number of instances)

Auto Scaling - Polices

• Dynamic Scaling
  • Target Tracking Scaling
    • simple to set up
    • 예시 ) 평균 ASG CPU가 40%대에 유지되도록 함
  • Simple/Step Scaling
    • 경보 트리거 발생시, 2 유닛 더하기, 1개 유닛 지우기 등
• Scheduled Scaling
  • anticipate a scaling based on known usage patterns
  • 예시 ) 매주 금요일 오전 10시부터 5시까지는 최소 용량 증가
• Predictive Scaling
  • continuously forecast load and schedule scaling ahead
• Good Metrics to Scale on
  • CPU Utilization
    • average cpu utilization across instances
  • Request Count Per Target
    • make sure the number of requests per EC2 instance is table
  • Average Network In/Out
  • Any Custom Metric
• Scaling Cool Downs
  • after a scaling activity happens, you are in the cooldown period( 300 seconds default )
  • during the cool down period, the ASG will not launch or terminate additional instances
  • use a ready-to-use AMI to reduce configuration time in order to be serving request fasters and reduce the cooldown period
